| صورة | نموذج | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

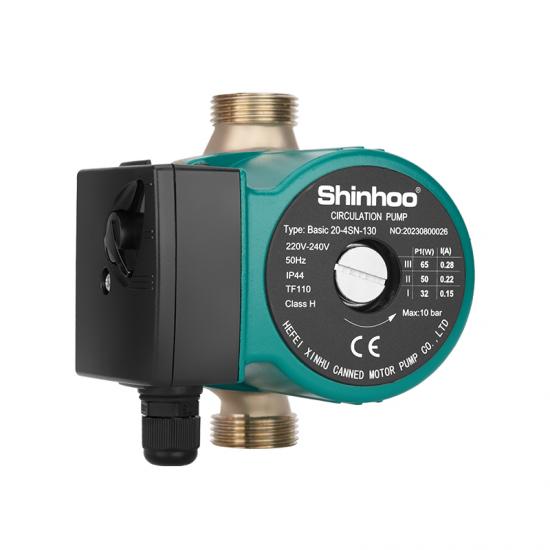

Basic 20-4SN | 20 | 2 | 9.5 | 12 | 115/230 | 50/60 | 270/240/160 | 130/150 | G1 |
 |
Basic 25-4SN | 25 | 1.6 | 2.6 | 4 | 115/230 | 50/60 | 65/50/32 | 130/180 | G1 1/2 |
 |
Basic 20-7SN | 20 | 2 | 4.2 | 6.5 | 115/230 | 50/60 | 130/110/90 | 130/150 | G1 |
 |
Basic 20-5SN | 20 | 1.8 | 3.2 | 5 | 115/230 | 50/60 | 85/60/40 | 130/150 | G1 |
 |
EPA 50-30ZA | 50 | 20 | 25 | 30 | 380 | 50 | 3000 | 321.5 | Chuck |
 |
Mega S 32-12 Pro | 32 | 5.5 | 7.5 | 12 | 220~240 | 50/60 | 220 | 180 | G2 |
 |
Mega S 25-12 Pro | 25 | 5.5 | 7.5 | 12 | 220~240 | 50/60 | 220 | 180 | G1 1/2 |
 |
Mega S 32-12F Pro | 32 | 11 | 7 | 12 | 220~240 | 50/60 | 400 | 180 | G2 |
