| صورة | نموذج | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

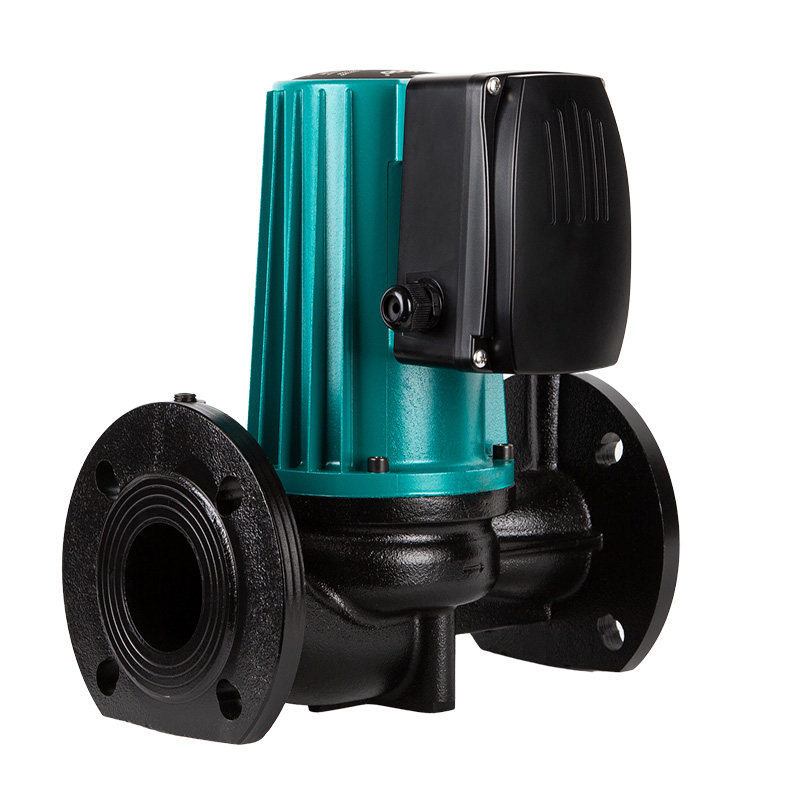

Mega S 80-8F | 80 | 37 | 5 | 8 | 230 | 50/60 | 750 | 391 | DN80/Flange |
 |
Basic 32-12S Pro | 32 | 6 | 8 | 12 | 230 | 50 | 500 | 180/220 | G2- G1 1/2 or G2- G1 1/4 |
 |
Basic 32-12SF Pro | 32 | 6 | 8 | 12 | 230 | 50 | 500 | 220 | DN32 – G2 |
 |
Basic 32-9SF Pro | 32 | 5 | 6.5 | 9 | 230 | 50 | 300 | 220 | DN32 – G2 |
|
Basic 32-9S Pro | 32 | 5 | 6.5 | 9 | 230 | 50 | 300 | 180/220 | G2- G1 1/2 or G2- G1 1/4 |
|
Basic 25-12S Pro | 25 | 3.5 | 9 | 12 | 230 | 50 | 300 | 200 | G1 1/2-G1 |
 |
Instant E 15-1.5 | 15 | / | / | 1.4 | 230 | 50 | 28 | 85 | G3/4 |
 |
Basic 20-4S | 20 | 2 | 9.5 | 12 | 115/230 | 50/60 | 270/240/160 | 130/150 | G1 |
 |
Basic 25-4SB | 25 | 1.6 | 2.6 | 4 | 115/230 | 50/60 | 65/50/32 | 130 | G1 1/2 |
 |
Basic 25-4S | 25 | 1.6 | 2.6 | 4 | 115/230 | 50/60 | 65/50/32 | 130/180 | G1 1/2 |
 |
Basic 32-4S | 32 | 1.8 | 2.6 | 4 | 115/230 | 50/60 | 65/50/32 | 180 | G2 |
 |
Basic 20-5S | 20 | 1.8 | 3.2 | 5 | 115/230 | 50/60 | 85/60/40 | 130/150 | G1 |
 |
Basic 25-5SB | 25 | 1.8 | 3.2 | 5 | 115/230 | 50/60 | 85/60/40 | 130 | G1 1/2 |
 |
Basic 25-5S | 25 | 1.8 | 3.2 | 5 | 115/230 | 50/60 | 85/60/40 | 130/180 | G1 1/2 |
 |
Basic 32-5S | 32 | 2.5 | 2.8 | 5 | 115/230 | 50/60 | 85/60/40 | 180 | G2 |
 |
Basic 20-6S | 20 | 1.8 | 3.6 | 6 | 115/230 | 50/60 | 100/70/55 | 130/150 | G1 |
 |

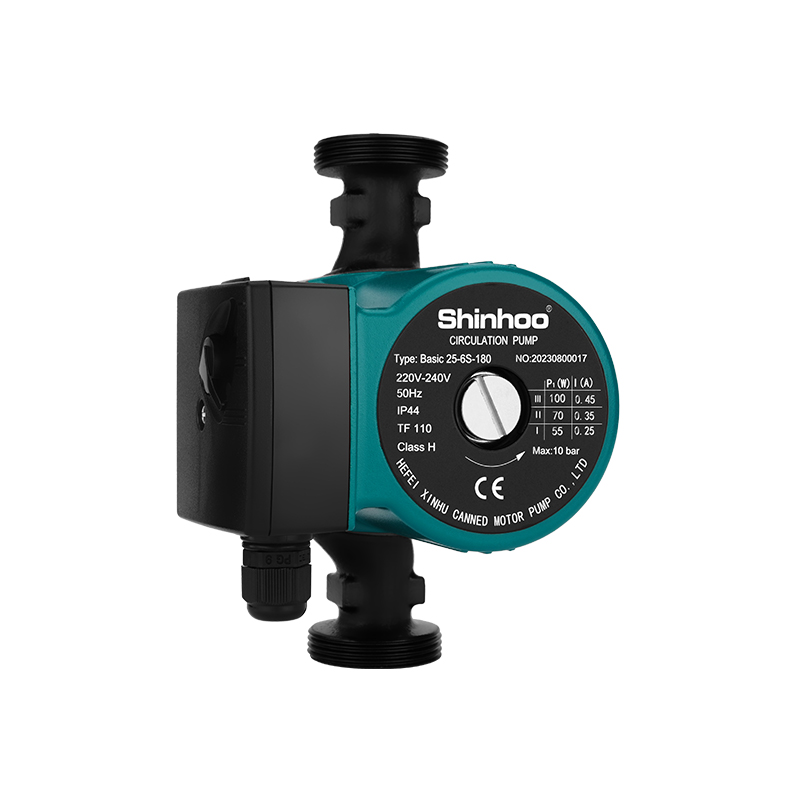

Basic 25-6S | 25 | 2 | 3.5 | 6 | 115/230 | 50/60 | 100/70/55 | 130/180 | G1 1/2 |
 |
Basic 32-6S | 32 | 2 | 3.5 | 6 | 115/230 | 50/60 | 100/70/55 | 180 | G2 |
 |

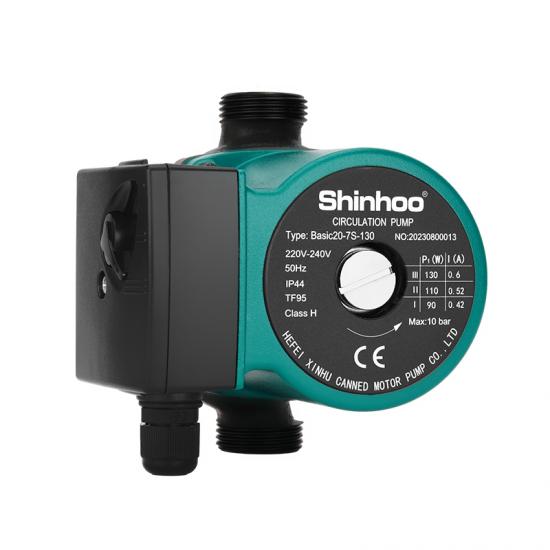

Basic 20-7S Pro | 20 | 3.5 | 4.7 | 7 | 220~240 | 50 | 140/115/70 | 130 | G1 |
 |
Basic 20-7S | 20 | 2 | 4.2 | 6.5 | 115/230 | 50/60 | 130/110/90 | 130/150 | G1 |
 |
Basic 25-7S Pro | 25 | 3.5 | 4.4 | 7 | 220~240 | 50 | 140/115/70 | 130/180 | G1 1/2 |
 |
Basic 25-7S | 25 | 2.5 | 3.8 | 6.5 | 115/230 | 50/60 | 130/110/90 | 130/180 | G1 1/2 |
 |
Basic 25-7SB | 25 | 2.5 | 3.8 | 6.5 | 115/230 | 50/60 | 130/110/90 | 130 | G1 1/2 |
 |
Basic 32-7S Pro | 32 | 5.3 | 2.5 | 7 | 220~240 | 50 | 140/115/70 | 180 | G2 |
 |
Basic 32-7S | 32 | 2.5 | 3.8 | 6.5 | 115/230 | 50/60 | 130/110/90 | 180 | G2 |
 |
Basic 15-9S | 15 | 1 | 5.5 | 9 | 115/230 | 50/60 | 120/80/65 | 160 | G3/4 |
 |

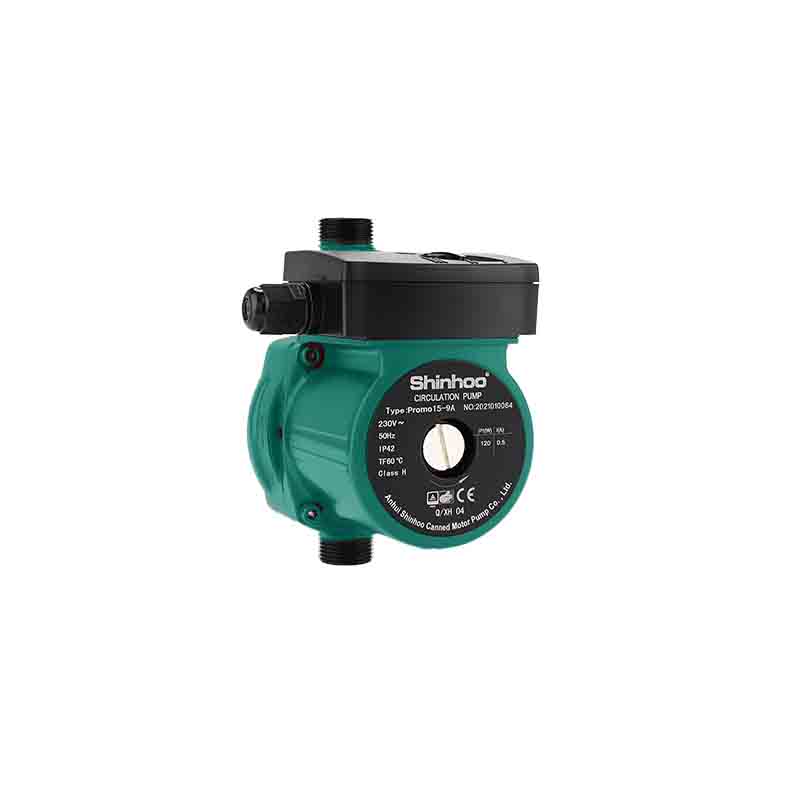

Promo 15-9A | 15 | 0.5 | 7.5 | 9 | 115/230 | 50/60 | 120 | 160/195 | G3/4 |
 |
Promo 15-12A | 15 | 1.2 | 10 | 12 | 230 | 50 | 270 | 150 | G3/4 |
 |
Basic 25-8SB | 25 | 3.2 | 6 | 8 | 115/230 | 50/60 | 245/190/135 | 180 | G1 1/2 |
 |
Basic 25-8S | 25 | 3.2 | 6 | 8 | 115/230 | 50/60 | 245/190/135 | 180 | G1 1/2 |
