| صورة | نموذج | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Classic E 20-4 | 20 | 1.5 | 2 | 4 | 230 | 50/60 | 22 | 130 | G1 |
 |
Classic S 32-6 | 32 | 2 | 3 | 6 | 230 | 50/60 | 45 | 180 | G2 |
 |
Classic 20-6 | 20 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130 | G1 |
 |
Classic 25-5 | 25 | 2 | 2.4 | 5 | 230 | 50/60 | 32 | 130/180 | G1 1/2 |
 |
Classic S 25-7.5 | 25 | 2.5 | 4.5 | 7.5 | 230 | 50/60 | 70 | 130/180 | G1 1/2 |
 |
Classic E 32-4 | 32 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 180 | G2 |
 |

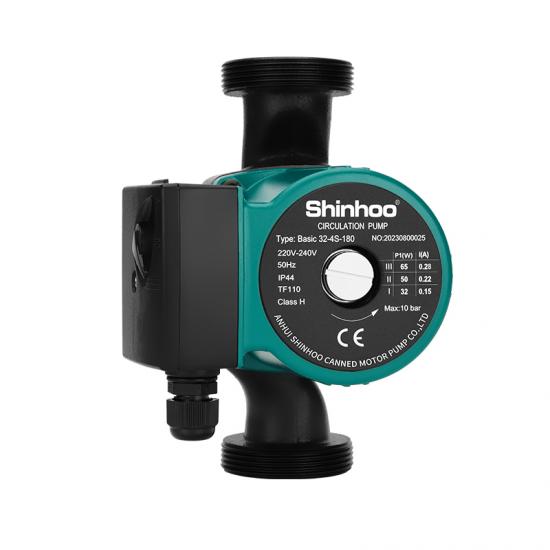

Basic 32-4S | 32 | 1.8 | 2.6 | 4 | 115/230 | 50/60 | 65/50/32 | 180 | G2 |
 |

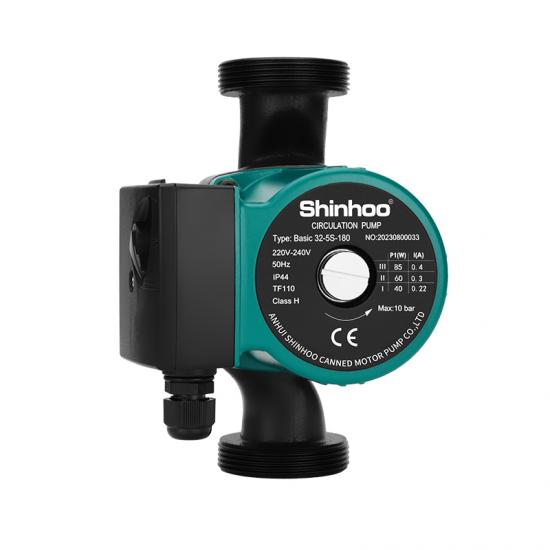

Basic 32-5S | 32 | 2.5 | 2.8 | 5 | 115/230 | 50/60 | 85/60/40 | 180 | G2 |
