| صورة | نموذج | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

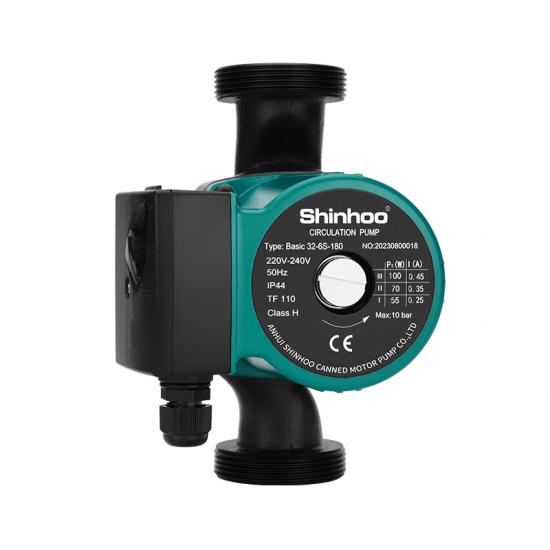

Basic 32-6S | 32 | 2 | 3.5 | 6 | 115/230 | 50/60 | 100/70/55 | 180 | G2 |
 |

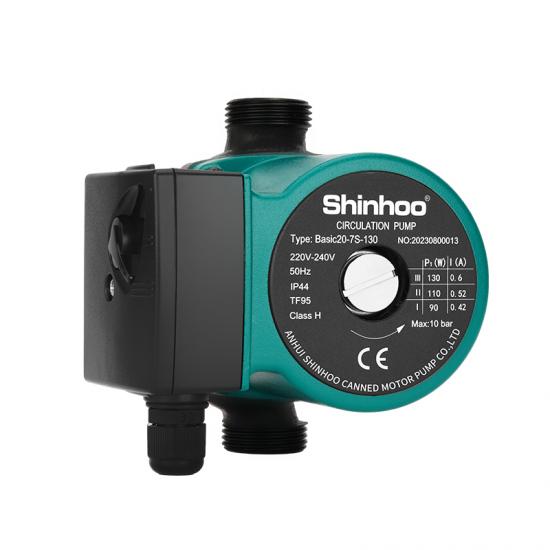

Basic 20-7S | 20 | 2 | 4.2 | 6.5 | 115/230 | 50/60 | 130/110/90 | 130/150 | G1 |
 |
Basic 32-12 | 32 | 6 | 8 | 12 | 115/230 | 50/60 | 500 | 180 | G2/Flange |
 |
Basic 32-16 | 32 | 7 | 12.5 | 16 | 230 | 50/60 | 700 | 230 | G2 |
 |
Basic 65-8SF Pro | 65 | 20 | 4.2 | 8.4 | 380 | 50 | 700 | 340 | DN65 |
 |
Basic S 32-6S | 32 | / | / | 6 | 230 | 50 | 70/60/50 | 180 | G2 |
 |
PUN-200L | 25 | 2 | 10 | 15 | 220 | 50 | 320 | 253 | G1 |
 |
PUN-751 | 32 | 5 | 20 | 30 | 220 | 50 | 1250 | 315 | G1 1/4 |
