| صورة | نموذج | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
GPA15-7.5 III U Z108 | 15 | 1 | 6.5 | 7.5 | 220~240 | 50/60 | 60 | 158 | DN15 |
 |
GPA15-5 III U Z107 | 15 | 1 | 3.5 | 5 | 220~240 | 50/60 | 33 | 158 | DN15 |
 |
GPA15-7 III U Z107 | 15 | 1 | 5.5 | 7 | 220~240 | 50/60 | 52 | 158 | DN15 |
 |
GPA15-6 III U Z107 | 15 | 1 | 4 | 6 | 220~240 | 50/60 | 39 | 158 | DN15 |
 |
GPA15-7.5 III U Z107 | 15 | 1 | 6.5 | 7.5 | 220~240 | 50/60 | 60 | 158 | DN15 |
 |
SPA 15-12E | 15 | 0.6 | 8 | 12 | 220 | 50/60 | 60 | 140 | G 3/4 |
 |
Basic 32-8SN | 32 | 4 | 5.5 | 8 | 115/230 | 50/60 | 245/190/135 | 180 | G2 |
 |

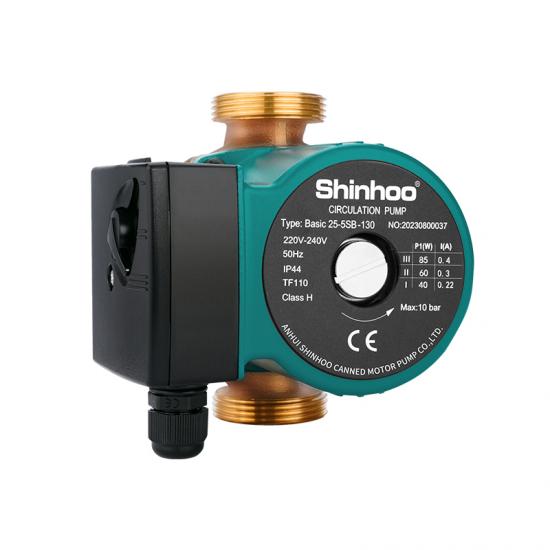

Basic 25-5SB | 25 | 1.8 | 3.2 | 5 | 115/230 | 50/60 | 85/60/40 | 130 | G1 1/2 |
