| صورة | نموذج | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |

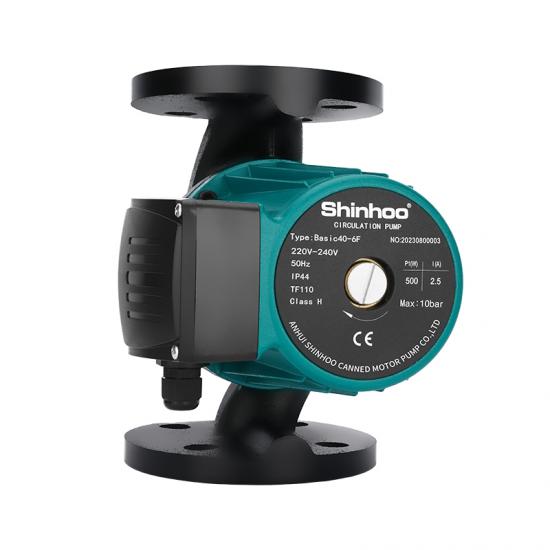

Basic T40-12F | 40 | 8 | 10 | 14 | 220~240 | 50 | 700 | 304 | Flanged |
 |
SPA15-12E | 15 | 0.3 | 11 | 12 | 24 | 50/60 | 45 | 90 | G 1/2 |
 |
PFM 08-36 | 40 | 8 | 36 | 58 | 220 | 50 | 1800 | 280 | DN40 |
 |
PFB 06-22 Pro | 25 | 6 | 22 | 28 | 220~240 | 50 | 700 | 260 | G1 |
 |
PFB 06-22 EC | 25 | 6 | 22 | 28 | 220 | 50 | 700 | 260 | G1 |
 |
PFM03-30EC Pro | 25 | 3 | 30 | 45 | 220 | 50 | 600 | 200 | G1 |
 |
PFM03-30 EC | 25 | 3 | 30 | 45 | 220 | 50 | 600 | 200 | G1 |
 |
AHB-200L | 25 | 2 | 10 | 15 | 220 | 50 | 320 | 253 | G1 |
 |
AHB-400 | 32 | 3.0 | 15 | 21 | 220 | 50 | 680 | 283 | G1 1/4 |
|
AHB-401 | 25 | 3 | 15 | 21 | 220 | 50 | 660 | 283 | G1 |
|
AHB-600 | 25 | 3 | 20 | 25 | 220 | 50 | 880 | 306 | G1 |
|
AHB-600T | 25 | 3 | 20 | 25 | 380 | 50 | 880 | 306 | G1 |
|
AHB-750 | 32 | 7 | 17.5 | 25 | 220 | 50 | 1100 | 322 | G1 1/4 |
|
AHB-750T | 32 | 7 | 17.5 | 25 | 380 | 50 | 1100 | 322 | G1 1/4 |
|
AHB-751 | 32 | 5 | 20 | 30 | 220 | 50 | 1250 | 315 | G1 1/4 |
 |
AHB-1100 | 50 | 13 | 15 | 23 | 220 | 50 | 1500 | 385 | G2 |
 |
AP-041 | 25 | 2 | 2.5 | 3.5 | 220 | 50/60 | 90 | 216 | G1 |
 |
AP-042 | 32 | 2 | 2.5 | 3.5 | 220 | 50/60 | 90 | 216 | G1 1/4 |
 |
AP-101 | 40 | 5 | 3 | 5 | 220 | 50 | 200 | 238 | G1 1/2 |
 |
AP-123 | 50 | 8 | 3 | 5 | 220 | 50 | 220 | 275 | G2 |
 |
AP-251 | 65 | 11 | 4 | 7.5 | 220 | 50 | 410 | 290 | G2 1/2 |
 |
AP-253 | 50 | 11 | 4 | 7.5 | 220 | 50 | 400 | 290 | G2 |
 |
AP-254 | 40 | 3 | 10 | 15 | 220 | 50 | 330 | 270 | G1 1/2 |
|
AP-402 | 80 | 11 | 10 | 16 | 220 | 50 | 850 | 335 | G3 |
|
AP-402T | 80 | 11 | 10 | 16 | 380 | 50 | 850 | 335 | G3 |
|
AP-403 | 50 | 8 | 16 | 20 | 220 | 50 | 1000 | 335 | G2 |
|
AP-403T | 50 | 8 | 16 | 20 | 380 | 60 | 1000 | 335 | G2 |
 |
AP-1501T | 50 | 16 | 15 | 25 | 380 | 50 | 1750 | 428 | G2 |
 |
AP-2201T | 50 | 18 | 20 | 30 | 380 | 50 | 2800 | 428 | G2 |
 |
MHI-201 | 25/25 | 2 | 9.5 | 11 | 220 | 50 | 250 | 373 | Rp1-Rp1 |
